HERORIVET SPR Self-Piercing Riveting Machines – Reliable Cold Joining for EV, Busbar & Sheet Metal Manufacturing

ightweight manufacturing, electric vehicle production and busbar assembly are pushing factories away from traditional spot welding and bolt fastening. When you need consistent, high-strength joints between aluminum, galvanized steel and mixed materials, self-piercing riveting (SPR) is the proven cold-forming fastening solution.

HERORIVET, a professional China SPR self-piercing riveting machine manufacturer, builds robust, programmable SPR equipment designed for mass industrial production. Our SPR riveters eliminate pre-drilling, avoid heat distortion and support both standalone workstations and robotic line integration. In this article, we explain how SPR works, its core benefits, typical applications and what makes HERORIVET SPR machines a solid choice for sheet metal fabricators worldwide.

What Is Self-Piercing Riveting (SPR)?

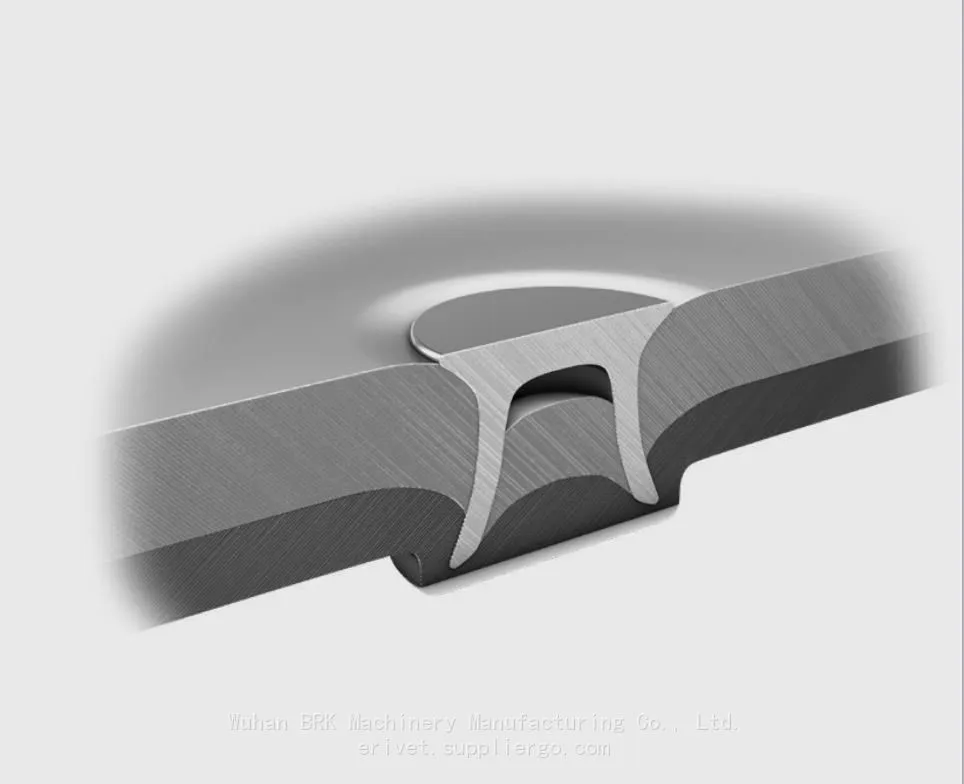

Self-piercing riveting is a one-step cold mechanical joining process. A semi-tubular SPR rivet is driven by controlled hydraulic or servo pressure. The rivet pierces the upper sheet layer, then its tail flares outward inside the bottom sheet under the die, forming a permanent mechanical interlock. The rivet does not punch fully through the last layer of material.

No pre-drilled holes, no welding heat, no sparks or fumes. One riveting cycle normally finishes within 1–2 seconds, making SPR perfect for high-volume assembly.

Key Advantages of SPR Technology

1. Join dissimilar metals reliablyWelding aluminum to high-strength steel often creates brittle intermetallic layers. SPR mechanically locks different materials without metallurgical fusion. It works for aluminum‑steel, aluminum‑aluminum, galvanized sheets and some composite stacks.

2. Cold joining, no heat-affected zoneSince SPR uses no heat, coated surfaces, zinc galvanized layers and pre-painted panels stay intact. You avoid warping, burn marks and costly rework after welding.

3. Higher productivity, fewer process stepsDrilling, punching and deburring steps are removed. Factories can cut cycle time and reduce labor cost for sheet metal assembly.

4. Excellent fatigue and vibration resistanceThe interlocked button joint holds steady under continuous vibration and cyclic loading. It performs well for EV chassis, battery enclosures and transport equipment.

5. One-sided operation capabilitySPR can be operated from the top side only, which suits sealed box structures and assemblies where backside access is limited.

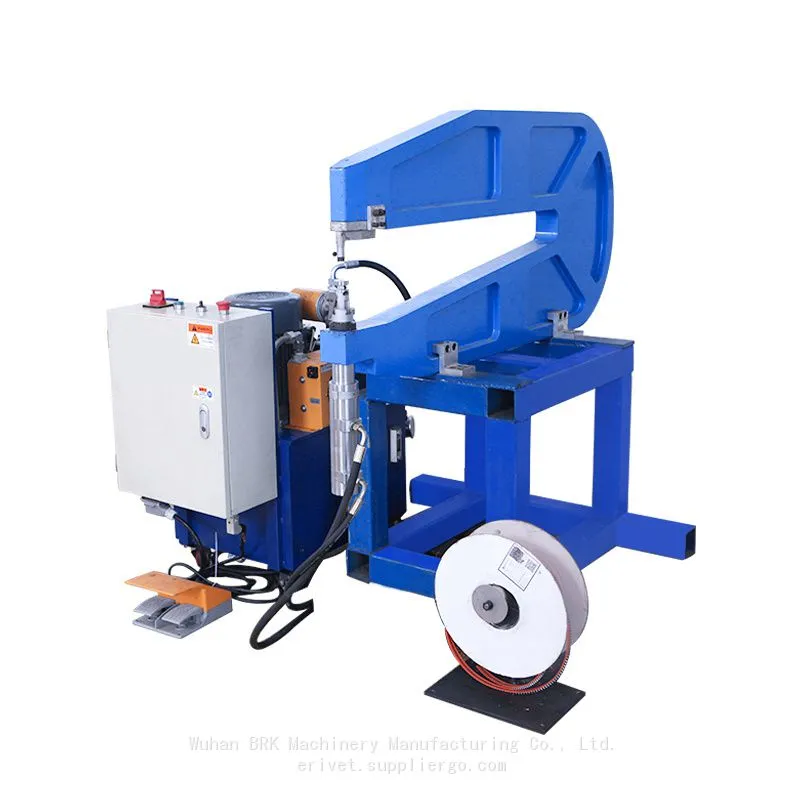

HERORIVET SPR Self-Piercing Riveting Machine Features

Our HERORIVET SPR riveting presses are engineered for stable, repeatable riveting quality.

• Servo or hydraulic drive options, adjustable riveting force, stroke and pressure holding time

• Standard C-frame design, easy to fit into manual jigs or robotic cells

• Automatic rivet feeding system available for continuous production

• Compatible with standard SPR rivets, interchangeable dies for different material thickness stacks

• Built-in force-displacement monitoring to detect bad joints and reduce scrap

• Simple HMI control panel for parameter storage and recipe switching

• Low maintenance structure, suitable for long-hour continuous workshop operation

Main Industries & Applications for HERORIVET SPR Machines

✅ Electric vehicle battery trays, battery covers and lightweight body components ✅ Copper-aluminum busbar and bus duct assembly ✅ HVAC sheet metal, cabinet and enclosure manufacturing ✅ Commercial vehicle, trailer and chassis lightweight structures ✅ Elevator panel, railway interior and transportation equipment ✅ Aluminum profile and mixed-metal fabricated parts

SPR vs Spot Welding: When Should You Choose SPR?

Spot welding works best for identical bare steel sheets. It struggles with aluminum, coated metal and dissimilar stacks. If you work with aluminum, galvanized panels, multi-material lightweight parts, or you cannot accept heat distortion, HERORIVET SPR self-piercing riveting is the better alternative.

FAQ

Q: Do I need to drill holes before SPR riveting?A: No. The semi-tubular SPR rivet pierces the top sheet automatically. Pre-drilling is not required.

Q: Can HERORIVET SPR machines connect aluminum and steel together?A: Yes. Our SPR systems are widely used for aluminum‑steel dissimilar joining for new energy and busbar projects.

Q: Can the SPR machine connect to robots for fully automatic lines?A: Yes. HERORIVET SPR riveting heads support robotic integration, we can customize interfaces according to your automation plan.

Q: What sheet thickness can your SPR equipment handle?A: Standard models support total stack thickness from 1.5 mm up to around 8–10 mm. We customize dies and pressure for your material specification.

Conclusion

As lightweight and multi-material assembly keeps growing, SPR self-piercing riveting becomes a mainstream fastening method for modern factories. HERORIVET delivers cost-effective, stable SPR riveting machines with full technical support, die matching and after-sales service for global buyers.

If you are searching for a reliable China SPR self-piercing riveting machine supplier for your EV, busbar or sheet metal production line, contact HERORIVET to discuss your material samples and get a tailored SPR solution.
